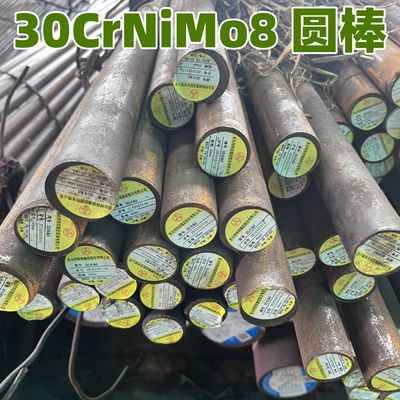

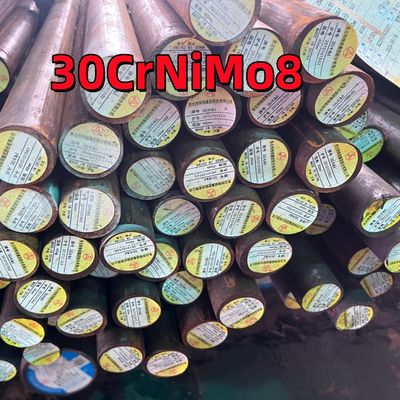

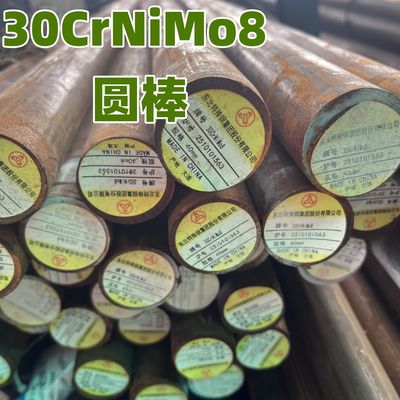

Hot Forged DIN 1.6580 30crnimo8 30Cr2Ni2Mo 30NCD8 Alloy Tool Quenched And Tempered Steel Bar
Product Description
DIN 30CrNiMo8 1.6580 30NCD8 QT Hot Forged Alloy Steel Round Bar
1. introduction
DIN 30CrNiMo8 steel is a medium carbon alloy structural steel which contain nickel,chromium and molybdenum. It's with medium hardenability designed for heavy duty compoents. It is also known as it's resistance to variable loads and impacts. It could characterize by high elasticity and tensile strength reaching over 1560Mpa. This material is used for production of heavily loaded parts, shafts and drive axes, steering shafts, crankshafts of engine, crews and element exposed to temperatures in the power industy. But this material is not suitable for welding and ultimately require additional preheating.
2. equivalent
| Country |
Japan |
Euro |
French |
USA |
| Standard |
/ |
EN10083 |
NF |
/ |
| Grade |
/ |
30CrNiMo8/1.6580 |
30CND8/30NCD8 |
/ |
3. chemical composition
| Grade |
C |
Si |
Mn |
P |
S |
Cr |
Mo |
Ni |
| 30CrNiMo8 |
0.26-0.34 |
0.4 |
0.3-0.6 |
0.025 |
0.035 |
1.8-2.2 |
0.3-0.5 |
1.8-2.2 |
| 30NCD8 |
0.26-0.34 |
0.1-0.4 |
0.3-0.6 |
0.030 |
0.025 |
1.8-2.2 |
0.3-0.5 |
1.8-2.2 |
4. mechanical properties
The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.
5. overviews
| Size |
Round |
Dia 30-1200mm |
| Plate/Flat/Block |
Thickness
6mm-500mm |
Width
20mm-1000mm |
| Heat treatment |
Normalized ; Annealed ; Quenched ; Tempered |
| Surface condition |
Black; Peeled; Polished; Machined; Grinded; Turned; Milled |
| Delivery condition |
Forged; Hot rolled; Cold drawn |
| Test |
Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. |
| Payment terms |
T/T;L/C;/Money gram/ Paypal |
| Trade terms |
FOB; CIF; C&F; etc.. |
| Delivery time |
30-45 days |
| Application |
30CrNiMo8 used for production of heavily loaded parts, shafts and dirve axes, steering shafts, crankshaft of engine, crews and element exposed to temperatures in the power industry and so on. |
6. Delivery condition
For hot forged bar, usually the delivery condition is hot forged, annealed/QT rough turned/Black surface.
For hot rolled bar, usually the delivery condition is hot rolled, annealed/QT, Black surface.
For hot forged plate, usually the delivery condition is hot forged, annealed/QT, milled surface
For hot rolled plate, usually the delivery condition is hot rolled, annealed/QT, black surface.
| Nominal diameter(mm): or for flat products thickness: to 8; 8-20; 20-60; 60-100; 100-160; |
to 16 |
16 - 40 |
40 - 100 |
100 - 160 |
160 - 250 |
Re - Upper yield strength or
Rp0.2 - 0.2% proof strength (MPa) (+QT) |
1050 |
1050 |
900 |
800 |
700 |
| Nominal thickness(mm): |
to 160 |
160 - 330 |
330 - 660 |
| Re - Upper yield strength (MPa) (+QT) |
700 |
630 |
590 |
| KV - Impact energy (J) longitud., (+QT) |
+20°
30-45 |
| KV - Impact energy (J) transverse, (+QT) |
+20°
20-27 |
| A - Min. elongation at fracture (%) transverse, (+QT) |
8-14 |
| Nominal thickness (mm): |
to 16 |
16 - 40 |
40 - 100 |
100 - 160 |
160 - 250 |
| A - Min. elongation Lo = 5,65 √ So (%) (+QT), round products |
9 |
9 |
10 |
11 |
12 |
| Nominal diameter (mm): or for flat products thickness: to 8; 8-20; 20-60; 60-100; 100-160; |
to 16 |
16 - 40 |
40 - 100 |
100 - 160 |
160 - 250 |
| Z - Reduction in cross section on fracture (%) (+QT) |
40 |
40 |
45 |
50 |
50 |
| Brinell hardness (HBW): (+A) |
248 - 255 |
Equivalent grades of steel 30CrNiMo8 (1.6580)
Warning! Only for reference
EU
EN |
Germany
DIN,WNr |
Japan
JIS |
France
AFNOR |
England
BS |
China
GB |
Russia
GOST |
Inter
ISO |
| 30CrNiMo8 |
|
|
|
|
|
|
|
Mechanical properties
| ReH |
Minimum yield strength / Mindestwert der oberen Streckgrenze / Limite d elasticite minimale |
| Rm |
Tensile strength / Zugfestigkeit / Resistance a la traction |
| A |
Minimum elongation / Mindestwert der Bruchdehnung / Allongement minimal |
| J |
Notch impact test / Kerbschlagbiegeversuch / Essai de flexion par choc |
Heat treatment conditions
| +A |
Soft annealed |
| +AC |
Annealed to achieve spheroidization of the carbides |
| +AR |
As rolled |
| +AT |
Solution annealed |
| +C |
Cold drawn / hard |
| +CR |
Cold rolled |
| +FP |
Treated to ferrite-pearlite structure and hardness range |
| +I |
Isothermal annealing |
| +LC |
Cold drawn / soft |
| +M |
Thermo mechanical rolling |
| +N |
Normalized |
| +NT |
Normalized and tempered |
|
| +P |
Precipitation hardened |
| +PE |
Peeled |
| +QA |
Air quenched and tempered |
| +QL |
Liquid quenched and tempered |
| +QT |
Quenched and tempered |
| +S |
Treated to improve shearability |
| +SH |
As rolled and turned |
| +SR |
Cold drawn and stress relieved |
| +T |
Tempered |
| +TH |
Treated to hardness range |
| +WW |
Warm worked |
| +U |
Untreated |
|
|
Alloy special steel
Chemical composition of steel 30CrNiMo8 (1.6580), Standards of steel 30CrNiMo8 (1.6580)
Mechanical Properties of steel 30CrNiMo8 (1.6580) Equivalent grades of steel 30CrNiMo8 (1.6580)
Tensile Strength, Elongation, Proof strength, Hardness
|
