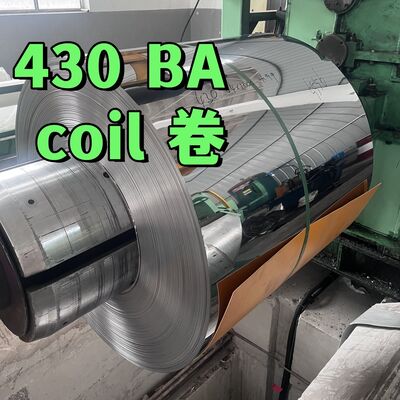

Thickness 0.5mm ASTM A240 AISI 430 Stainless Steel Strip Coil Width 1220-1250mm 430 Ba Surface
| Product name |
Bright surface of cold rolled stainless steel 430 coils and sheets |
| Material Type |
Magnetic ferrite 430 grade |
| HR Origin |
TISCO /JISCO /LISCO /BAOSTEEL |
| Grade |
410S, 430, sus430, jis430 |
| Form |
Cold Rolled Treatment, soft material |
| Thickness |
0.18-2.0mm |
| Width |
10-1250mm |
| Length |
As request, Coil |
| Surface |
No.1, 2D, 2B, NO.4, HL(Hairline),8K, BA |
| More Process |
Paper Insert, PVC coated, slit edge, circle cutting, |
| Packing |
Wooden pallet/coil,strip
Wooden case/circle,sheet, about 3tons per package
|
| Normal Lead Time |
10-40days after deposit received |
| Payment Term |
T/T, Irrevocable L/C at sight |
| Application |
Tableware, Kitchenware, Kitchen, Tools, Auto decoration, Pipe, Furniture parts,Tank, Building decoration, Lamp parts ,Door and window, bathroom etc. |
| |
|
What we can supply?
Finished: 2B, BA, NO.3, NO.4, Hairline, 6K, 8K, polish etc.
Cold rolling soft DDQ good quality stainless steel coils 430 410 201 409L
CR SS sheets 430 410 201 409L

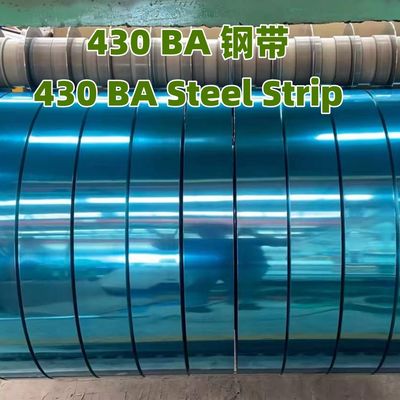

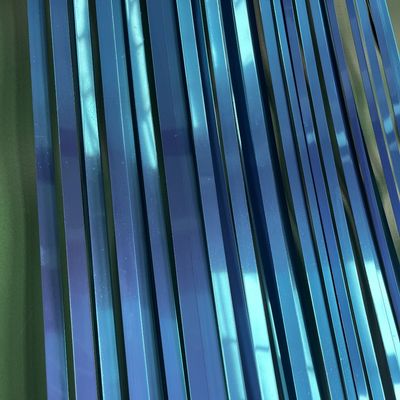

CR SS Strips 430 410 201 409L
CR SS Plate 430 410 201 409L
CR SS Circle 201 410 430, AOD, INDUCTION, J4, J1
Products and parameters:
Grade:
12X17/430/1.4016
Description:
430 is one of the most widely used of the "non-hardenable" ferritic stainless steels. With nominal 16% chromium it combines good corrosion resistance and heat and oxidation resistance up to 1500 °F (816 °C) with good mechanical properties. Type 430 is a non-stabilized stainless steel and as such is not suitable for all welded applications.
Application:
automotive trim and molding/ furnace combustion chambers/ dishwashers/ range hoods/ gas burners on heating units/ gutters and downspouts and flatware.
Corrosion Resistanc:
430 has excellent corrosion resistance, including high resistance to nitric acid as well as to sulfur gases and many organic and food acids. This alloy does not provide the resistance to pitting by dilute reducing acids that is provided by the chromium-nickel stainless steels. Because of its relatively high chromium content, the material provides good resistance to oxidation. Its maximum scaling temperature is 1500 °F (816 °C) for continuous service.
Formability:
Type 430 stainless steel is easily drawn and formed. Its drawing characteristics are similar to those of low-carbon steel, but it is stronger in the annealed condition. Therefore, it requires stronger tooling and increased power. Additionally, it is adaptable to most hot-forming operations.
Weldability:
This ferritic class of stainless steels is generally considered to be weldable by common fusion and resistance techniques. Special consideration is required to avoid brittle weld fractures during fabrication by minimizing discontinuities, controlling weld heat input, and occasionally warming the part somewhat before forming. This particular alloy is generally considered to have slightly poorer weldability than the most common alloy of the stainless class, Type 409, but better than standard non-stabilized Type 410 with higher carbon. A major difference is the addition of aluminum to control hardening, which results in the need for higher heat input to achieve penetration during arc welding. When a weld filler is needed, American Welding Society (AWS) Classification ER/EC430, E430TX-X, ER/EC309L, or E309LT0-3 wires may be used
Chemical Composition
| C≤% |
Mn≤% |
P≤% |
S≤% |
Si≤% |
Cr% |
Ni≤% |
| 0.12 |
1.00 |
0.040 |
0.030 |
1.00 |
16.0-18.0 |
0.75 |
Performance
| T.S. min |
Y.S. min |
EL min% |
HARDNESS( max) |
| Mpa |
Mpa |
50mm |
HBW |
HRB |
HV |
| 420 |
205 |
22 |
183 |
89 |
200 |
What machines do we have?
Stainless steel Cold rolling machines, 18 and 20 roller system
Bright anneal Oven
Strip coil cutting, slit/trim edge cutting machines
No.3 and No.4 finished with PVC machines:
Application:
Company Information
The Reason Why You Will Choose Us
- We are an large storage company and have our own factory . We specialize in stainless steel products for 23 years, which located in Wuxi City ,China , very close to Shanghai Port.
- After many years of accumulation and upgrading ,we have rich experience in stainless steel products and galvanized steel products .
- Our product line includes stainless steel sheet/plate/circle/coil/strip/pipe/tube/bar. etc and galvanized steel sheet/plate/coil/strip. etc . More than 200 kinds of products for your choice .
- Our technical staff have developed special stainless steel that used in some extremely harsh working environment. Such as Monel / Incoloy / Inconel / Hastelloy .etc
- Our products are certified by ISO9001:2008 authentication quality systems.
- we are nominated as the AAA enterprise by Jiangsu government.
- Customized Service is provided on the basis of high quality & reasonable price .
- We are powerful manufacturer audited by world top inspection company ISO ,SGS, TUV and BV.
- Our products have been exported to more than 60 countries and regions.
- Good after-sale service .
- We sincerely welcome you to visit our factory if you have interest ,we will show our best sincerity .
Our Service
- Customized Size & Surface Treatment as your requirement .
- Free Sample can be provided .
- Mill Test Certificate is supplied with shipment, third Party Inspection is acceptable.
