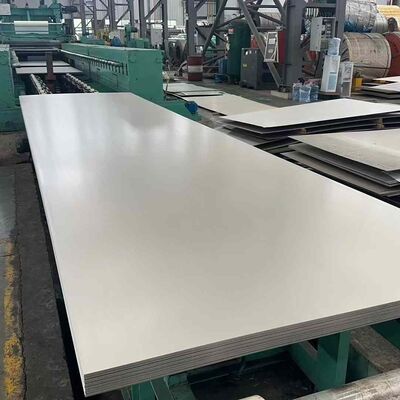

ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm

ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm
ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm

Ampliación de imagen :  ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm

Datos del producto:
Lugar de origen: China Wuxi
Nombre de la marca: BAO STEEL MITTEL TISCO
Certificación: SGS ISO MTC
Número de modelo: Incoloy 825
Pago y Envío Términos:
Cantidad de orden mínima: 100kg
Precio: 15-26 USD/KG
Detalles de empaquetado: Caja de madera
Tiempo de entrega: 7 días laborables
Condiciones de pago: LC, T/T
Capacidad de la fuente: 80000 kgs

ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm

descripción
Material: Metal, acero inoxidable Forma: Departamento
Solicitud: Paisajismo, decoración de jardines interiores y exteriores Uso: Decoración de jardines, plantación de flores y plantas, exterior, oficina
Espesor: 1 a 3 mm,1.0 mm o personalizado ancho: 100 a 2000 mm
Resaltar:

ASTM B424 nickel alloy plate

,

Incoloy 825 stainless steel plate

,

UNS N08825 alloy plate 6x1219mm

ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm

Specification And Material Grade Of Incoloy 825 Plate

ASME/ASTM Name ASTM B424 / ASME SB 424
size in mm 2000 mm x 4000 mm, 1220 mm x 2440 mm, 1000 mm x 2000 mm, 2000 mm x 2000 mm, 1500 mm x 3000 mm,
Thickness of Standard Plate 0.1 to 12 mm Thick
Most Frequently Used Form Strip, Flats, Rolls, Ring (Flange), Coils, Foils, Shim Sheet, Blank (Circle), Plain Sheet
Different Finish Cold rolled sheet (CR), 2B, Hot rolled plates (HR), BA NO(8), SATIN (Met with Plastic Coated), 2D,
Hardness Range Half Hard, Soft, Quarter Hard, Spring Hard, Hard etc



Minimum Yield Strength Chart Of Astm B424 UNS N08825 Strip

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
825 8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %



Chemical Structure Of 2.4858 Coils

Grade C Mn Si S Cu Fe Ni Cr Al Ti
825 0.05 max 1.00 max 0.5 max 0.03 max 1.50 – 3.00 22.00 min 38.00 – 46.00 19.50 – 23.50 0.02 max 0.06 – 1.20



Equivalent Table Of JIS NCF 825 Plates

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 825 2.4858 N08825 NCF 825 NA 16 ЭП703 NFE30C20DUM NiCr21Mo

ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm 0ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm 1ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm 2 ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm 3



FAQ

What types of high-temperature alloy products do you offer?
We offer high-temperature alloy rods, wires, strips, plates, tubes, bolts, and nuts. Our products cover various specifications and sizes to meet different application needs.

How to choose the right high-temperature alloy material?
Choosing the right high-temperature alloy material requires a comprehensive consideration of factors such as the temperature, corrosiveness, and mechanical strength requirements of the specific application environment. Our engineers can provide professional advice to help you select the most suitable material.

What international standards do your high-temperature alloy products meet?
Our products meet international standards such as ASTM, AMS, GB/T, ensuring product quality and reliability.

Can you customize products according to customer requirements?
Yes, we offer customized services based on the specific needs of our customers, including special specifications and performance requirements.

What are your production processes and quality control like?
We use advanced production processes and a strict quality control system. From raw material procurement to the final product shipment, every step is carefully monitored to ensure the product quality meets the standards.

Can you provide samples?
Yes, we can provide samples according to your requirements.
