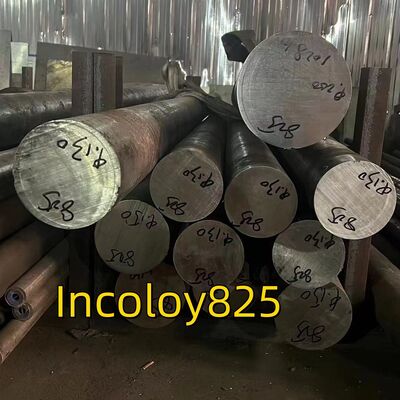

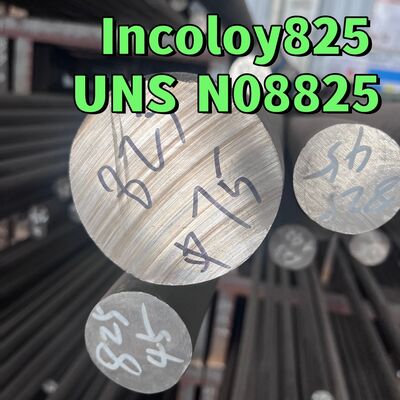

Incoloy825 Alloy W.Nr 2.4858 UNS N08825 Nickel Iron Chromium Alloy Round Bar
INCOLOY 825 / W.Nr. 2.4858 (UNS N08825)
Incoloy 825 is a titanium-stabilized fully austenitic nickel-iron-chromium alloy with intentional additions of molybdenum, copper and titanium, conforming to German DIN standard Werkstoff Nr. 2.4858 and ASTM B409 / B424 / B704.
The balanced chemical composition delivers outstanding resistance to both oxidizing and reducing corrosive media: chromium provides passivation against nitric acid; molybdenum improves pitting & crevice corrosion resistance; copper greatly enhances performance in sulfuric and phosphoric acids; sufficient nickel resists chloride-induced stress corrosion cracking; titanium stabilizes carbon to prevent intergranular corrosion after welding or high-temperature exposure.
Solution annealed at 920–980°C followed by rapid cooling, Alloy 825 maintains good mechanical strength from cryogenic temperature up to 550°C, with excellent formability and weldability.
It is widely used in chemical processing plants, pickling lines, flue gas desulfurization, offshore oil & gas, seawater cooling systems, phosphoric acid production and nuclear waste handling.
Available forms: round bar, flat bar, plate, sheet, seamless tube, welded pipe, forging and wire, supplied with DIN EN 10204 3.1 / 3.2 mill test certificates for EU market.
| Product Name | Nickel Alloy Bar |
| Material | Monel/Inconel/Hastelloy/Haynes/Nickel Alloy/Nickel-Cobalt Alloy |
| Grade | Hastelloy:HastelloyB/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 / DIN W.Nr. 2.4617,Hastelloy C, Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602, Hastelloy
C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665
Haynes: Haynes 230/556/188
Inconel: Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20 Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851, Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr.2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816
Incoloy: Incoloy 800/800H/800HT/825/925/926;
Monel: Monel 400/K500/R405 |
| Specification | Customized |
| Packaging according to customer requirements or products |
| Product Characteristics | 1.According to the preparation process can be divided into deformation superalloys,
casting superalloys and powder metallurgy superalloys.
2.According to the strengthening mode, there are solid solution strengthening type, precipitation
strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc.. |
| Standard | GB,AISI,ASTM,DIN,EN,SUS,UNS etc |
| Inspection | ISO,SGS,BV and so on. |
| Delivery time | Usually 7-15 dyas, or upon negotiation |
| Price terms | FOB,CRF,CIF,EXW all acceptable |
ALLOY 825
- UNS N08825
- WERKSTOFF 2.4858
- Key Properties* (in annealed condition)
- Tensile Strength (ksi): 95
- Yield Strength (ksi): 45
- Elongation (%): 45
- Hardness (HV): 155
*Nominal Room Temperature Mechanical Properties. Typical Data. Not suitable for design or specifications.
ABOUT ALLOY 825
The nickel in Alloy 825, in conjunction with the molybdenum and copper, gives superb resistance to reducing environments such as those containing sulfuric and phosphoric acids. The molybdenum prevents resistance to pitting and crevice corrosion. The alloy’s chromium content confers resistance to a variety of oxidising substances such as nitric acid, nitrates and oxidising salt.
NeoNickel specialises in supplying high performance metal alloys to a wide variety of industries. As a highly respected European supplier we provide the finest quality heat resistant, corrosion resistant, aerospace, titanium and stainless steel alloys anywhere on the market.
Alloy 825 can be used in a variety of applications, here are just a few examples:
- Fuel element dissolvers
- Sea-water-cooled heat exchangers; offshore product piping systems; tubes and components in sour gas service
- Heat exchangers, evaporators, scrubbers, dip pipes etc. in phosphoric acid production
- Air-cooled heat exchangers in petroleum refineries
- Chemical and Food Processing
Frequently Asked Questions
Q1:What product information must I provide before making a purchase?
Please provide the grade, width, thickness, and surface treatment requirements, as well as the quantities you require.
Q2:What shipping ports are there?
We normally ship from Shanghai, Tianjin, Qingdao, and Ningbo ports
Q3:What are your payment terms?
30% T/T in advance and 70% balance before shipment or based on BL copy or LC at sight.
Q4:What about product pricing information?
Prices vary due to changes in raw material prices on a regular basis.
Q5:Is it possible to send samples?
Of course, we offer free samples and express shipping to customers all over the world.
Q6:Do you offer a service for customized products?
Yes, we can produce according to your specifications and drawings.
Q7:Can you assist me in importing steel products for the first time?
Yes, we have shipping agent who will arrange the shipment with you.
Q8. What is your delivery time?
Within 7 working days after receiving your balance payment.
