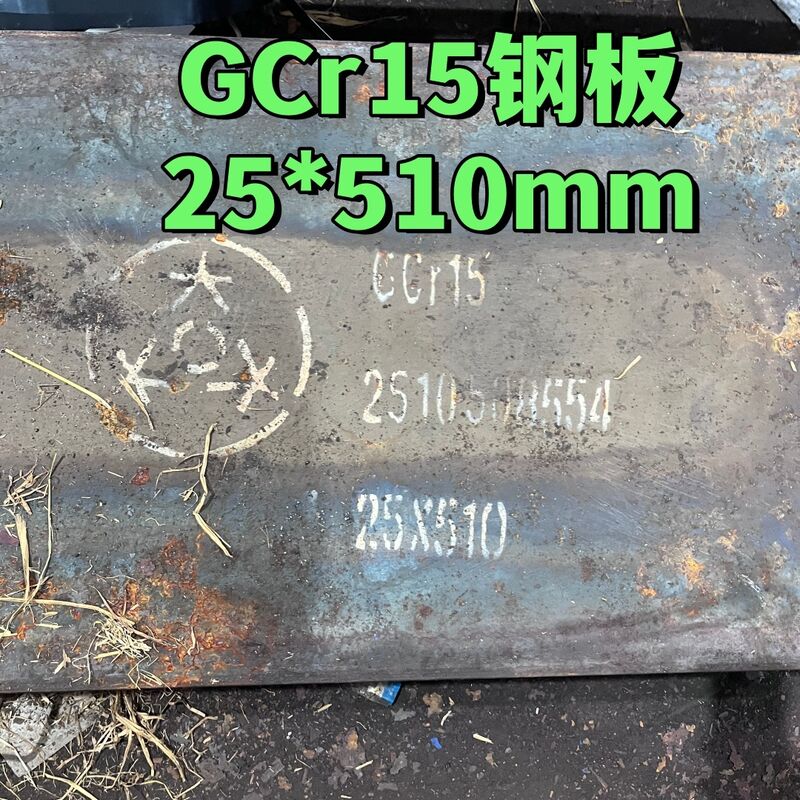

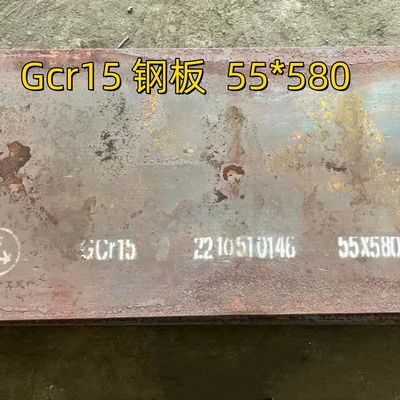

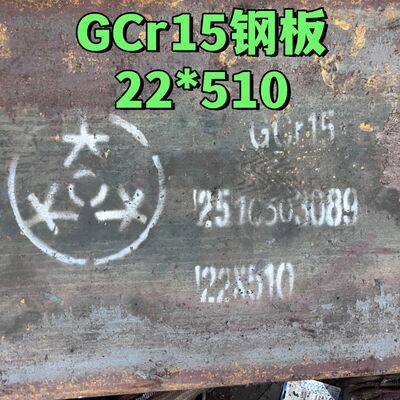

100Cr6 ( DIN 1.3505) SUJ2 Gcr15 Bearing Steel SAE 52100 Plate 25*510mm

GCr15 Bearing Steel Introduction

GCr15 steel is one of the most commonly used Chinese bearing steels, it’s a high carbon chromium bearing steel with high hardenability, high & uniform hardness after heat treatment, high contact fatigue strength, good dimensional stability and corrosion resistance. The cold deformation plasticity is medium, the machinability is general, the weldability is poor, and it is sensitive to the formation of white spots, and there is a first type of temper brittleness.

Datasheet & Specification

GCr15 Steel Chemical Composition

GCr15 Bearing Steel Mechanical Properties

GCr15 Material Hardness

• Spheroidizing annealing hardness: 179-207 HBW
• Softening annealing hardness: ≤245 HBW

Bending of GCr15 bearing steel

• Hot rolled round steel: ≤3mm/meter; Total bending: ≤0.3% x length
• Hot rolled annealing round steel: ≤3mm/meter; Total bending: ≤0.3% x length
• Calcined round steel: ≤5mm/meter; Total bending: ≤0.5% x length
• Cold drawn round steel (Φ≤25mm): ≤2mm/meter; Total bending: ≤0.2% x length
• Cold drawn round steel (Φ>25mm): ≤1.5mm/meter; Total bending: ≤0.15% x length

GCr15 bearing steel is used to manufacture various bearing sleeves with wall thickness ≤12mm and outer diameter ≤250mm, steel balls with diameters of 25.4-50.8mm; also used for other rolling elements with wide range of sizes, such as tapered rollers, cylindrical rollers, spherical rollers, needle rollers, etc.; also used in the manufacture of molds, precision gauges and other mechanical parts that require high wear resistance, high elastic limit and high contact fatigue strength.

Equivalent

GCr15 steel equivalent to US AISI SAE ASTM, European EN, Germany DIN, Japanese JIS, British BSI, France NF and ISO standard.

You may also be interested in GCr15 vs 52100, 100Cr6 and SUJ2 steel.

GCr15 Equivalent (For reference)
China		USA		European		Japan		ISO
Standard	Grade	Standard	Grade	Standard	Grade	Standard	Grade	Standard	Grade
GB/T 18254	GCr15	AISI SAE, ASTM A295/A295m	52100	EN ISO 683-17	100Cr6 (1.3505)	JIS G4805	SUJ2	ISO 683-17	100Gr6

Notes: DIN 17230 is covered by DIN EN ISO 683-17, NF A35-565 is covered by NF EN ISO 683-17.
